Products

MODEL NO.	MANUAL	DIMENSIONS (MM)	AUX VOLTAGE	SETTING	TYPE	OUTPUT (IN HP)

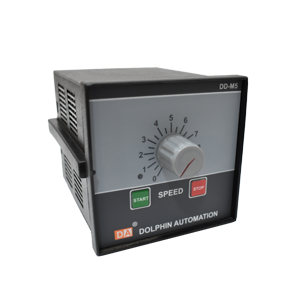

DDM5		96X96X110	STANDARD 180 TO 250 VAC	THROUGH FRONT PANEL KNOB	SHUNT / PMDC	1 HP
DDM5-1		96X96X110	STANDARD 180 TO 250 VAC	THROUGH FRONT PANEL KNOB	SHUNT / PMDC	5 HP

TEMPERATURE INDICATOR

MODEL NO.	DIMENSIONS (MM)	AUX VOLTAGE	DIGITS	SENSOR RANGE	RESOLUTION
PM-64 TI	48X96X65	STANDARD 180 TO 250 VAC ON DEMAND 12/24/48 VDC 110 VAC	3 ^1/2 DIGITS SIZE 0.56"	J TYPE 0 TO 600 deg C K TYPE 0 TO 1200 deg C RTD(PT 100) -50 TO 400 deg C	FOR J & K 1 deg C RTD (PT100) 0.1 deg C or 1 deg C on demand.
PM-14 TI	96X96X70
PM-34 TI	72X72X65

MODEL NO.	TYPE	RANGE	RELAY	RESET	SUPPLY VOLTAGE	INDICATIONS

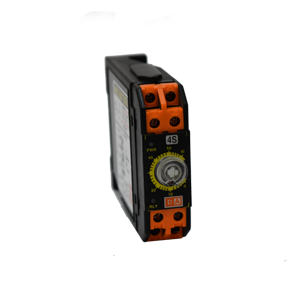

4S	SINGLE RANGE ON DELAY	3/10/30/60 sec	SINGLE C/O	POWER ON RESET(less than 100mS)	220 VAC DEFAULT 24VDC/110VAC/440VAC ON DEMAND	POWER & RELAY ON LED INDICATION

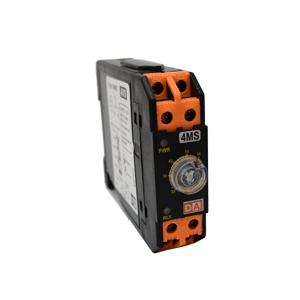

4MS	MULTI RANGE ON / INTERVAL DELAY	15/60 Sec 7.5/60 Min	SINGLE C/O TWO C/O ON DEMAND
4SD	DUAL RANGE STAR DELTA	RUM UP TIME 30/60 Sec PAUSE TIME 50/100 mSec	SINGLE C/O EACH FOR STAR & DELTA
