Products-TIMER

PROGRAMMABLE TIMER

MODEL NO.	DIMENSIONS (MM)	DIGITS	SET POINT	FEATURES

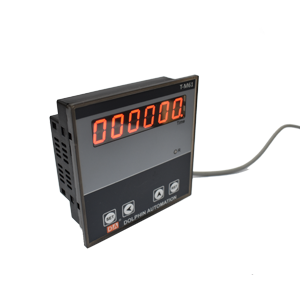

T-M61	96X96X50	6	SINGLE	INPUT SUPPLY 240 VAC / 24 VDC RANGE-Hr:Min:Sec & Min:Sec:Milli Sec CYCLIC, ON DELAY, OFF DELAY MEMORY/BATCH VIEW UP TIME / DOWN TIME SELECTABLE RELAY 7 AMP@230VAC TRIG-POWER ON/PULSE INPUT/GATED INPUT SELECTABLE MEMORY-SELECTABLE FRONT AND BACK RESET RELAY 7AMP@250 VAC SOFT KEY SETTING
T-K61	72X72X50
T-H61	48X96X70

DOUBLE DISPLAY TIMERS-CYCLIC & DELAY BOTH

MODEL NO.	DIMENSIONS (MM)	DIGITS	SET POINT	FEATURES

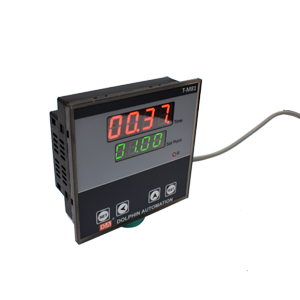

T-M81	96X96X50	4+4 DOUBLE DISPLAY	SINGLE	INPUT SUPPLY 240 VAC / 24 VDC RANGE-9999/999.9/99.99 Hr/Min/Sec Selectable MEMORY-SELECTABLE UP TIME / DOWN TIME SELECTABLE RELAY 7 AMP@230VAC TRIG-POWER ON/PULSE INPUT/GATED INPUT SELECTABLE FRONT AND BACK RESET RELAY 7AMP@250 VAC SOFT KEY SETTING SET VALUE DISPLAY

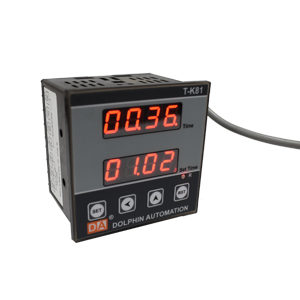

T-K81	72X72X50

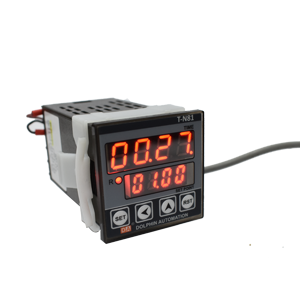

T-N81	48X48X70
