Products-HUMIDITY CONTROLLERS

MODEL NO.	DIMENSIONS (MM)	DIGITS	CONTROL MODE	RESOLUTION	SENSOR RANGE	FEATURES

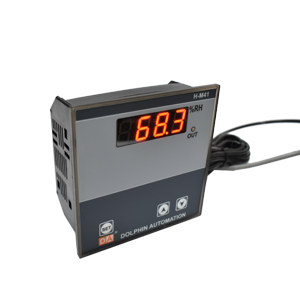

H-M41	96X96X50	4	0N-OFF	0.1 % RH	CAPACITIVE TYPE SENSOR RANGE - 10 TO 95% RH	SMPS SUPPLY 90 TO 270 VAC CAPACITIVE SENSOR HUMIDITY - DE HUMIDITY MODE TIME DELAY FUNCTION / HYSTERISES OUTPUT RELAY 7 AMP / SSR / BOTH
H-K41	72X72X75

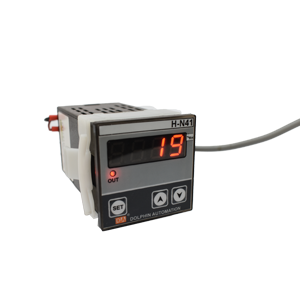

H-N41	48X48X85

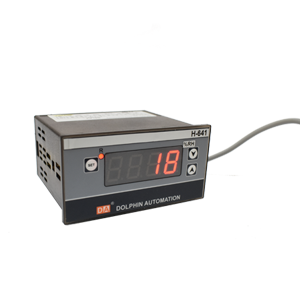

H-641	48X96X65
H-931	36X72X70	3

MODEL NO.	DIMENSIONS (MM)	DIGITS	CONTROL MODE	RESOLUTION	SENSOR RANGE	FEATURES
H-M81	96X96X50	4+4	0N-OFF	0.1 % RH	CAPACITIVE TYPE SENSOR RANGE - 10 TO 95% RH	SMPS SUPPLY 90 TO 270 VAC CAPACITIVE SENSOR HUMIDITY - DE HUMIDITY MODE TIME DELAY FUNCTION / HYSTERISES OUTPUT RELAY 7 AMP / SSR / BOTH

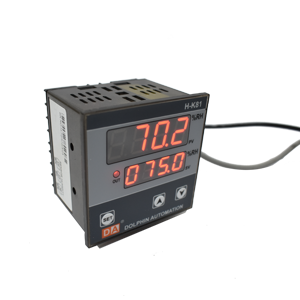

H-K81	72X72X75
H-N81	48X48X85

MODEL NO.	DIMENSIONS (MM)	DIGITS	CONTROL MODE	RESOLUTION	SENSOR RANGE	FEATURES

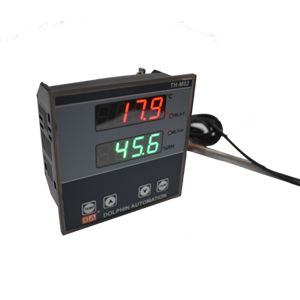

TH-M82	96X96X50	4+4	0N-OFF	0.1 % RH	CAPACITIVE TYPE SENSOR RANGE - 10 TO 95% RH TEMPERATURE SENSOR PT 100 -99 deg C to 399.9 deg C	SMPS SUPPLY 90 TO 270 VAC CAPACITIVE SENSOR HUMIDITY - DE HUMIDITY MODE TIME DELAY FUNCTION / HYSTERISES OUTPUT RELAY 7 AMP / SSR / BOTH
TH-K82	72X72X75
TH-N82	48X48X85
