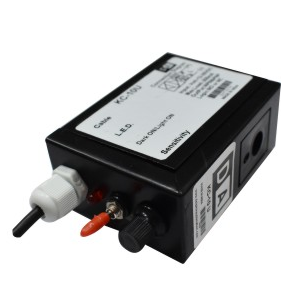

MARK SENSOR

ORDER CODE DIMENSION (MM) LOGIC O/P FREQUENCY COMMON SPECS
KC10U 66X90X38 PNP & NPN BOTH NO+NC 50 Hz Voltage 12-35 V DC, Max Load Current less than 300mA
Voltage Drop less than 2V DC, Leakage Current less than 12mA- @12 V DC
PVC Cable Switching Impulse Suppression, Reverse Polarity & Over Load Protected

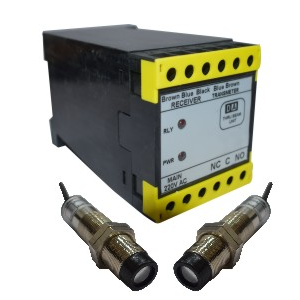

Type- Thrubeam

Transmitter and Receiver are in separate housing facing each other with their optical areas. when ever the IR beam is interrupted a O/P Pulse is achieved.

ORDER CODE DIAMETER SN RANGE (ADJ) REMARKS
KT4000GX M-18 4 meters Unit Contains two sensors one as transmitter
other as receiver and a DIN RAIL Mount
Control Box with a single change over relay
O/P with a rating of 5 Amps/230 VAC
KT8000HX M-30 7 meters
KT4000GXD
(with ON and OFF time delay)		 M-18 4 meters Unit Contains two sensors one as transmitter
other as receiver and a DIN RAIL Mount
Control Box with a single change over relay
O/P with a rating of 5 Amps/230 VAC and
two timing control POT adjustable up to
10 sec Providing ON delay and
OFF Delay
KT8000HXD
(with ON and OFF time delay) 		M-30 7 meters

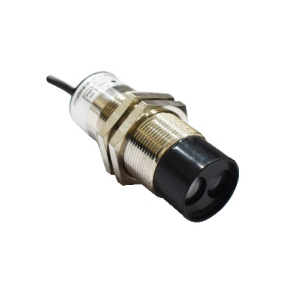

Type- Thrubeam (inbuilt Amplifier)

ORDER CODE Out. Dia Sn (Adj) Logic O/P FREQUENCY COMMON SPECS
KT4000GS1 M-18 4 meter PNP NO 50 Hz Voltage 10-35 V DC
Max Load Current less than 300mA
Voltage Drop less than 2V DC
Leakage Current less than 10mA
Reverse Polarity Protected,
Switching Impulse,
Suppression, PVC Cable,
Units contains two sensors one as
transmitter other as receiver having
in built amplifiers so that they can be
connected directly to any external
DC supply and an output load can be
operated
KT4000GS2 NC
KT4000GR1 NPN NO
KT4000GR2 NC
KT8000HS1 M-30 7 meter PNP NO
KT8000HS2 NC
KT8000HR1 NPN NO
KT8000HR2 NC

**SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE**
