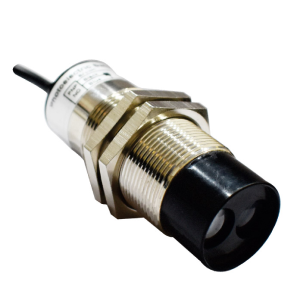

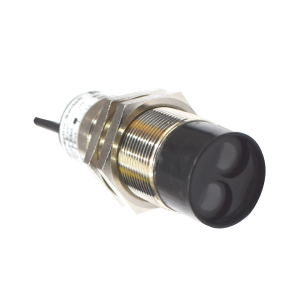

Photoelectric Sensors - M-30 (Input DC Voltage 4 Wire) - STANDARD RANGE

All the above models are available in connector type version with suffix “P” to the model number, Example KD1000LRGS3P

ORDER CODE RANGE(MM) LOGIC O/P FREQUENCY COMMON SPECS
KD1000HS3 1000 mm PNP NO+NC 300 Hz Voltage 10-35 V DC, Max Load Current less than 300mA
Voltage Drop less than 2V DC, Leakage Current less than 12mA- @12 V DC
Switching Impulse Suppression, Reverse Polarity & Over Load Protected PVC Cable
KD1000HR3 NPN

Photoelectric Sensors - M-30 (Input DC Voltage 4 Wire) - LONG RANGE

All the above models are available in connector type version with suffix “P” to the model number, Example KD2000HS3P

ORDER CODE RANGE(MM) LOGIC O/P FREQUENCY COMMON SPECS
KD2000HS3 2000 mm PNP NO+NC 200 Hz Voltage 10-35 V DC, Max Load Current less than 300mA
Voltage Drop less than 2V DC, Leakage Current less than 12mA- @12 V DC
Switching Impulse Suppression, Reverse Polarity & Over Load Protected PVC Cable
KD2000HR3 NPN

Photoelectric Sensors - M-30 (Input AC Voltage 2 Wire)

ORDER CODE RANGE(MM) O/P FREQUENCY COMMON SPECS
KD400HW1 400 mm NO 25 Hz Voltage 90-250 V AC
Max Load Current less than 400mA
Voltage Drop less than 5V AC
Leakage Current less than 4.5mA
Switching Impulse Suppression
PVC Cable
KD400HW2 NC

**SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE**
