Products-POT TYPE (PUSH TO SET) CONTROLLER - SINGLE SET POINT

MODEL NO.	MANUAL	TERMINAL CONNECTION	DIMENSIONS (MM)	DIGITS	CONTROL MODE	RESOLUTION	SENSOR RANGE	FEATURES
PTC-M41			96X96X65	4	0N-OFF / AUTOTUNE	1 C for J & K / 0.1 deg C for RTD	-99 to 600 deg C for J, -99 to 1300 deg C for K, -99.9 to 399.9 deg C for PT 100	SMPS SUPPLY 90 TO 270 VAC OUTPUT RELAY 7 AMP / SSR / BOTH

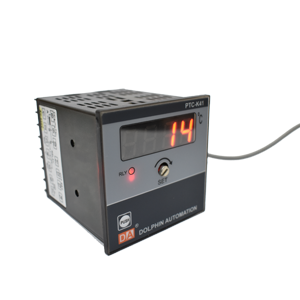

PTC-K41			72X72X65	4	0N-OFF / AUTOTUNE	1 C for J & K / 0.1 deg C for RTD		SMPS SUPPLY 90 TO 270 VAC OUTPUT RELAY 7 AMP / SSR / BOTH

MODEL NO.	DIMENSIONS (MM)	DIGITS	CONTROL MODE	RESOLUTION	SENSOR RANGE	FEATURES

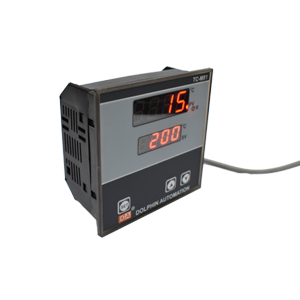

TC-M81	96X96X50	4+4	0N-OFF / AUTOTUNE	1 C for J & K / 0.1 deg C for RTD	-99 to 600 deg C for J, -99 to 1300 deg C for K, -99.9 to 399.9 deg C for PT 100	SMPS SUPPLY 90 TO 270 VAC UNIVERSAL INPUT J/K/PT 100 OUTPUT RELAY 7 AMP / SSR / BOTH

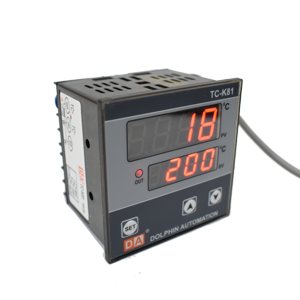

TC-K81	72X72X75
TC-N81	48X48X85

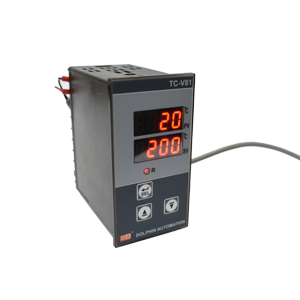

TC-V81	96X48X65	3+3

MODEL NO.	MANUAL	TERMINAL CONNECTION	DIMENSIONS (MM)	DIGITS	CONTROL MODE	RESOLUTION	SET POINTS	SENSOR RANGE	FEATURES

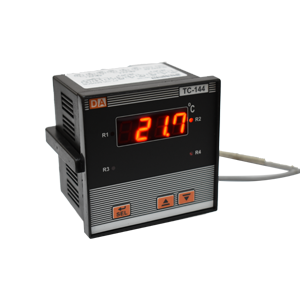

TC-144			96X96X65	4	0N-OFF MODE	0.1 deg C for RTD	4	-99.9 to 399.9 deg C - PT 100	SMPS SUPPLY 90 TO 270 VAC OUTPUT RELAY 7 AMP / SSR / BOTH
HAND HELD INDICATOR			134X70X24	4	NA	0.1 deg C - PT100	NA	-99.9 deg C to 1800 deg C	MULTI INPUT PT100 / J/K/R/S/T SENSORS
