Products-TIMERS

ON/OFF DELAY TIMER (THUMBWHEEL)

MODEL NO.	DIMENSIONS (MM)	DIGITS	SET POINT	FEATURES

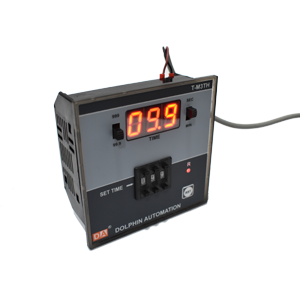

T-M3TH	96X96X65	3	SINGLE	INPUT SUPPLY 240 VAC / 24 VDC RANGE-999/99.9 Min/Sec RELAY 7 AMP@250VAC MEMORY-SELECTABLE FRONT AND BACK RESET RELAY 7AMP@250 VAC SET VALUE DISPLAY THUMBWHEEL SETTING
T-K3TH	72X72X65

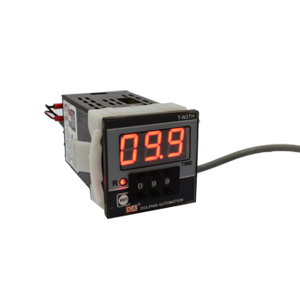

T-N3TH	48X48X85

MODEL NO.	MANUAL	TERMINAL CONNECTION	DIMENSIONS (MM)	DIGITS	FEATURES
T-H6X			48X96X65	6	INPUT SUPPLY 240 VAC / 24 VDC RANGE-999999/99999.9 Hr./Min/Sec BACK RESET MEMORY-10 YRS. SOFT KEY SETTING GATED INPUT SENSOR INPUT TRIGGER INPUT VOLTAGE PULSE
T-96X			36X72X70	6

MODEL NO.	MANUAL	TERMINAL CONNECTION	DIMENSIONS (MM)	DIGITS	FEATURES
FR-M82			96X96X50	4+4	INPUT SUPPLY 240 VAC / 24 VDC NPN/PNP PROXIMITY & MICROSWITCH MEMORY SELECTABLE AUTO RESET MANUAL RESET FRONT & BACK 2 RELAY 7 AMP@230 VAC SIGLE SET POINT
FR-K82			72X72X65	4+4
